Wu Xi KaiDa Telecommunication

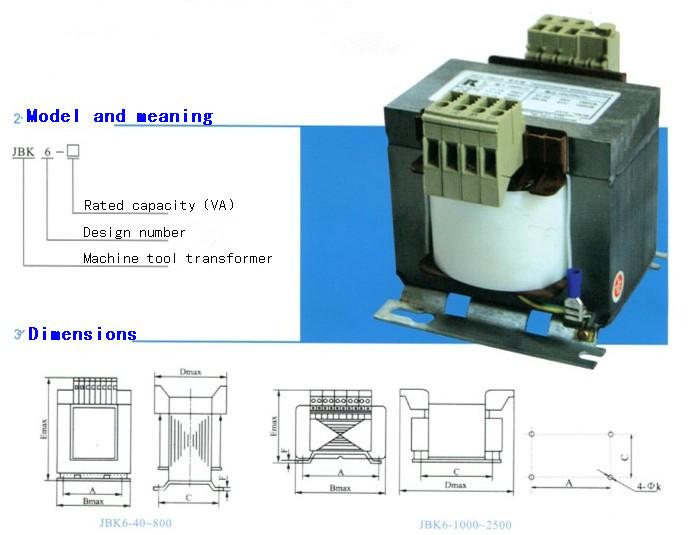

JBK6 machine tool transformer

1.Application
JBK6 series machine tool control transformer is the introduction of the latest Transformers series, in the country JBK5 series machine tool control transformer, based on the development of a new generation of transformers in for 50-60HZ, product complies with EN61558-2, Canada CSA and UL standards the United States, can replace the foreign 4AM, 4AT-type transformers. JBK6 transformer dimensions, installation size, using the same transformer JBK5 occasions, JBK6 JBK5 variable transformer has a number of advantages but also has the following features.
1 large terminal screws, wiring convenient, more secure, but also has quick connect dual function.
2 can short-circuit and thermal protection device, the use of more reliable.
3 transformer with an integrated dipping process, the use of imported materials, insulation materials, insulation and more stable performance.
4.100VA-400VA available with standard rail mounting.
